Industrial Vacuum Sausage Filler Knot Tying Machine AKQ1200 600knots/min Stainless Steel
| MOQ: | 1 Set |
| Price: | USD 30000-130000 / Set |
| Standard Packaging: | Wooden case |
| Delivery Period: | 15-30 days after advance payment |
| Payment Method: | L/C, T/T, D/P, Western Union, PayPal, |
| Supply Capacity: | 2000 Sets per Month |
Detail Information
Place of Origin
China
Brand Name
EPS
Certification
ISO 9001, CE
Model Number
AKQ1200
Model:
AKQ1200
Total Power:
8KW
Power Supply:
AC 380V+N+PE
Filling Capacity:
3000kg/h
Stuffing Speed:
600 Knots Per Minute
Applicable Casing:
Animal Casing, Protein Casing, Collagen Casing
Portion Range:
5g To 99999g
Hopper Volume:
240L
Twisting Length Range:
30-380mm
Twisting Diameter:
16-38mm
Material:
SUS304 Stainless Steel
Vacuum Degree:
-0.1MPa
Control:
PLC + Servomotor + Man-machine Interface
Highlight:
Industrial Vacuum Sausage Filler
,600 Knots Per Minute Tying
,Protein Collagen Casing Compatible
Product Description

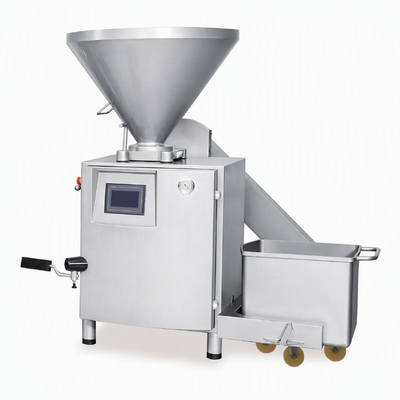

Industrial Vacuum Sausage Filler And Knot Tying Machine AKQ1200
The AKQ1200 industrial vacuum sausage filler and knot tying machine performs the filling process under vacuum to avoid fat oxidation and proteolysis, reduce bacterial survival and extend shelf life. Products keep a brighter color and the pure taste of the meat.
Product Features
- Vacuum filling process avoids fat oxidation and proteolysis, reduces bacterial survival and guarantees a longer shelf life.
- Automatic casing knot tying device suitable for animal casing, protein casing and collagen casing. Stuffing speed reaches 600 knots per minute.
- Portion range from 5g to 99999g with high quantitative accuracy for minced meat and diced products.
- Man-machine interface, servomotor, decelerator and PLC controller are all imported products. Vacuum degree can reach -0.1MPa.
- SUS304 stainless steel body with a novel appearance design and advanced processing technology.
- Can connect with a double clipping machine, an automatic sausage hanging machine, a high-speed sausage length controller or a sausage tying machine.
Applications
Suitable for dried sausage, fried sausage, homemade sausage, French sausage, flavor sausage, salami, ham, hot dog, liver sausage, rice sausage, cuttlefish sausage, grilled sausage and more.
Technical Parameters
| Model | AKQ1200 |
| Total Power | 8KW |
| Power Supply | AC 380V+N+PE |
| Filling Capacity | 3000kg/h |
| Stuffing Speed | 600 knots per minute |
| Applicable Casing | Animal casing, protein casing, collagen casing |
| Portion Range | 5g to 99999g |
| Hopper Volume | 240L |
| Twisting Length Range | 30-380mm |
| Twisting Diameter | 16-38mm |
| Material | SUS304 Stainless Steel |
| Vacuum Degree | -0.1MPa |
