Complete Sausage Filler Tying Production Line AK3200T Vacuum Filling Automated System
| MOQ: | 1 Set |
| Price: | US$30000-130000 |
| Standard Packaging: | Wooden Case |
| Delivery Period: | 15-30 working days |
| Payment Method: | L/C,T/T,D/P,Western Union,Paypal, |
| Supply Capacity: | 2000 Sets per Month |
sausage filler tying production line
,vacuum filling automated system
,AK3200T sausage production line
Product Description

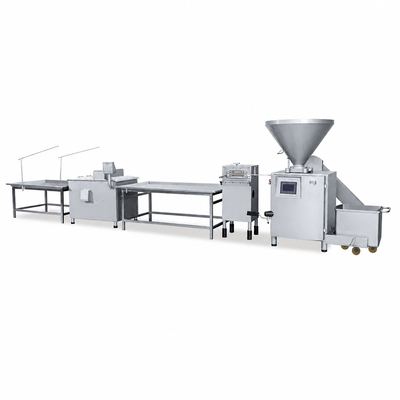

The EPS Sausage Filler And Tying Production Line (model AK3200T+AKQ1200+AK800) combines a vacuum filler, an automatic tying machine and a high speed clipper into one complete automated system. Taking the vacuum filling machine as the mother machine, the whole line fills, portions, twists and ties sausages continuously in a vacuum state, delivering consistent weight, length and quality at high speed and large capacity, making it the ideal processing solution for sausage manufacturing plants.
Characteristic and Features
- With the vacuum filling machine as the mother machine, the filling process is completed in a vacuum state, effectively preventing fat oxidation, avoiding protein hydrolysis and reducing bacterial survival to ensure shelf life
- The degree of vacuum can reach -0.1MPa
- High degree of automation, high speed and large production capacity; the weight, length and quality of the final product are kept within a high standard range
- Adapts to collagen casing, cellulose casing, animal casing and plastic casing
- Saving casing: about 600 meters/ton for a 125mm, 38g product; about 1600 meters/ton for a 50mm, 10g product
- Stainless steel construction with button control, stable and easy to operate
Technical Parameters
| Model | Total Power | Capacity | Sausage Length | Sausage Diameter | Accuracy | Vacuum | Voltage | Weight |
|---|---|---|---|---|---|---|---|---|
| AK3200T+AKQ1200+AK800 | 10kw | Max 800 knots/min | 20-250mm | 9-40mm | ±2mm/100mm | -0.1MPa | 380V/50Hz | 2020kg |
Applications
Our equipment can make all kinds of sausages: dried sausage, fried sausage, homemade sausage, French sausage, flavor sausage, salami, ham, hot dog, liver sausage, rice sausage, cuttlefish sausage, grilled sausage and more.
Product Images
Company Profile
EPS Machine Company is a manufacturer of high-performance food processing equipment, including sausage production lines, vacuum fillers, tying machines, clippers, slicers, grinders, bowl cutters and smoke houses. With years of project experience and a skilled design team, EPS offers energy-efficient, reliable and sustainable solutions. We follow ISO 9001 standards and most machines hold CE certificates. Our products have been exported to Russia, Spain, Australia, Thailand, Singapore, Vietnam, Malaysia, the Philippines, South Africa and more.
Warranty: 1 Year | After-sales Service: Online Services | HS Code: 84385000
