Automatic Sausage Linking Hanging System AK6200T+AK9200 Stainless Steel Production Line
| MOQ: | 1 Set |
| Price: | USD 30000-130000 / Set |
| Standard Packaging: | Wooden Case, package size 720*146*240cm, gross weight 2020kg |
| Delivery Period: | 15-30 days after advance payment |
| Payment Method: | L/C, T/T, D/P, Western Union, PayPal, |
| Supply Capacity: | 2000 Sets per Month |
Detail Information
Place of Origin
China
Brand Name
EPS
Certification
ISO 9001, CE
Model Number
AK6200T+AK9200
Model:
AK6200T+AK9200
Application:
Sausage Linking And Hanging
Material:
SUS304 Stainless Steel
Control Mode:
Programmable Button Control
Total Power:
14KW
Power Supply:
AC380V+N+PE
Direct Filling Capacity:
4000-6500 Kg/h
Quantitative Accuracy:
±1.5g/100g (minced Meat), ±2g/100g (meat)
Fixed Length Accuracy:
Protein Casing ±1mm, Natural Casing ±3mm
Hopper Volume:
250L
Hoist Max Lifting Weight:
250kg
Vacuum Pressure:
0~-0.1mpa
Max Twisting Speed:
1500 Knots/min
Twisting Length Range:
30-380mm
Twisting Sausage Diameter:
φ16~φ38
Hanging Length:
600mm
Production Line Dimensions:
7090*1362*2255mm
Weight:
≈2020kg
Warranty:
1 Year
After-sales Service:
Online Services
HS Code:
84385000
Highlight:
stainless steel sausage linking system
,automatic sausage production line
,sausage hanging system with warranty
Product Description

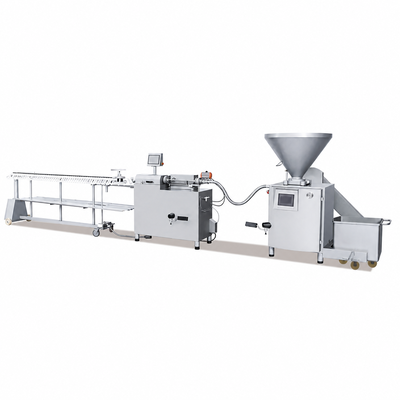

Automatic Sausage Linking And Hanging System AK6200T+AK9200
The AK6200T+AK9200 Sausage Linking And Hanging System is a fully automatic production line built for commercial and industrial sausage makers. Combining a low-speed, large-displacement vacuum filler with a high-speed twisting and hanging unit, it delivers consistent weight, dense structure and a longer shelf life for every finished sausage.
Characteristic and Features
- The low-speed and large-displacement pump effectively prevents fat oxidation, protein hydrolysis, fiber damage and filling heating problems, ensuring the end product has no air, high density, good structure, and a longer shelf life.
- Adapts to a wide range of casings: natural casings, collagen casings and plastic casings.
- Compatible with pure meat sausages, bobo sausages, roast sausages, sausages, ham sausages and other sausage products.
- The production line adopts programmable control operation, so each parameter can be set according to different products.
- The fixed length of the product can be quickly switched by replacing the synchronous belt, keeping the length and weight of each product the same.
- Self-contained casing automatic detection system (automatic stop without casing, including artificial casing and natural casing).
- High degree of automation, fast speed and large production capacity; double-pipe switching greatly improves production efficiency (about 30% efficiency increase), reduces costs and reduces defective products and material waste.
- The whole machine is made of SUS304 stainless steel and alloy stainless steel, easy to clean and conforms to national hygiene standards.
Technical Parameters
- Total power: 14KW
- Power supply: AC380V+N+PE
- Direct filling capacity: 4000kg~6500kg/h (depending on the product)
- Quantitative accuracy of direct filling: ±1.5g/100g (minced meat), ±2g/100g (meat, depending on the size of the meat)
- Fixed length accuracy: protein casing ±1mm, natural casing ±3mm (raw product)
- Hopper volume: 250L; hoist max lifting weight: 250kg
- Vacuum pressure: 0~-0.1mpa
- Maximum twisting speed: 1500 knots/min
- Twisting length range: 30~380mm
- Twisting sausage diameter: φ16~φ38
- Hanging length of hanging machine: 600mm
- Dimensions of the production line (LxWxH): 7090*1362*2255mm
- Weight: ≈2020kg
All Kinds of Sausages Can Be Made
Dried sausage / Fried sausage / Homemade sausage / French sausage / Flavor sausage / Salami / Ham / Hot dog / Liver Sausage / Rice Sausage / Cuttlefish Sausage / Grilled sausage and more.
Application
Suitable for commercial sausage factories, meat processing plants and central kitchens producing hot dogs, salami, ham sausage, dried sausage, French sausage and many other types at industrial scale.
Packaging & Shipping
Packed in export-grade wooden case, package size 720*146*240cm, gross weight 2020kg. Delivery in 15-30 days after advance payment.
